Titan's own product range are all based on the Pelton wheel technique. This well proven method is the ideal way of measuring low rates of flow of low viscosity liquids. Our comprehensive ranges of radial flow turbine meters offer a selection of products for many differing types of application. Some are suitable for chemical plant others for the semi-conductor industry and others are ideal for drink dispense or beer monitoring equipment. All have rugged bearings and excellent repeatability. The choice of fitting type reflects the function of the meter, some have simple hose barbs and others may be fitted with custom designed process connections to suit a OEM installation.

Model (weblink)	Number of Meters in range	Minimum flow L/Min	Maximum flow L/Min	Accuracy range	Detector type	Body material	Pipe fitting
Flow Transducer	2	0.015	30	±1.5% FSD	Optical	Polyacetal	15mm copper

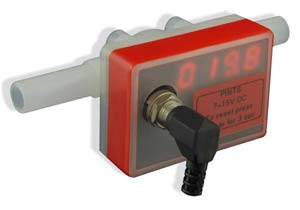

Totaliser	1	0.5	10	±2.0%FSD	Hall effect	PVDF	3/8” Plain pipe

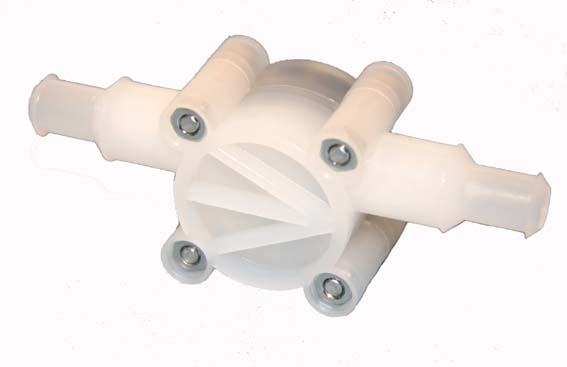

800 series	6	0.05	15	±1.0±2.0% FSD	Hall effect	PVDF or Poly prop	Hose barb
900 series	6	0.05	15	±1.0±2.0% FSD	Hall effect	PVDF or 316 St.St.	¼ “BSP female
1000 series	7	0.05	30	±1.0±2.0% FSD	Hall effect	PVDF or 316 St.St.	½ “ BSP female
Mini turbine	4	0.03	6,5	±0.75%FSD	Optical	PVDF or 316 St.St.	¼ “ BSP female
FT2 (optical)	10	0.01	160	±1.0±2.0%FSD	Optical	Polysulfone	Various
FT2 (hall effect)	9	0.05	160	±1.0±2.0%FSD	Hall effect	Polysulfone	Various
